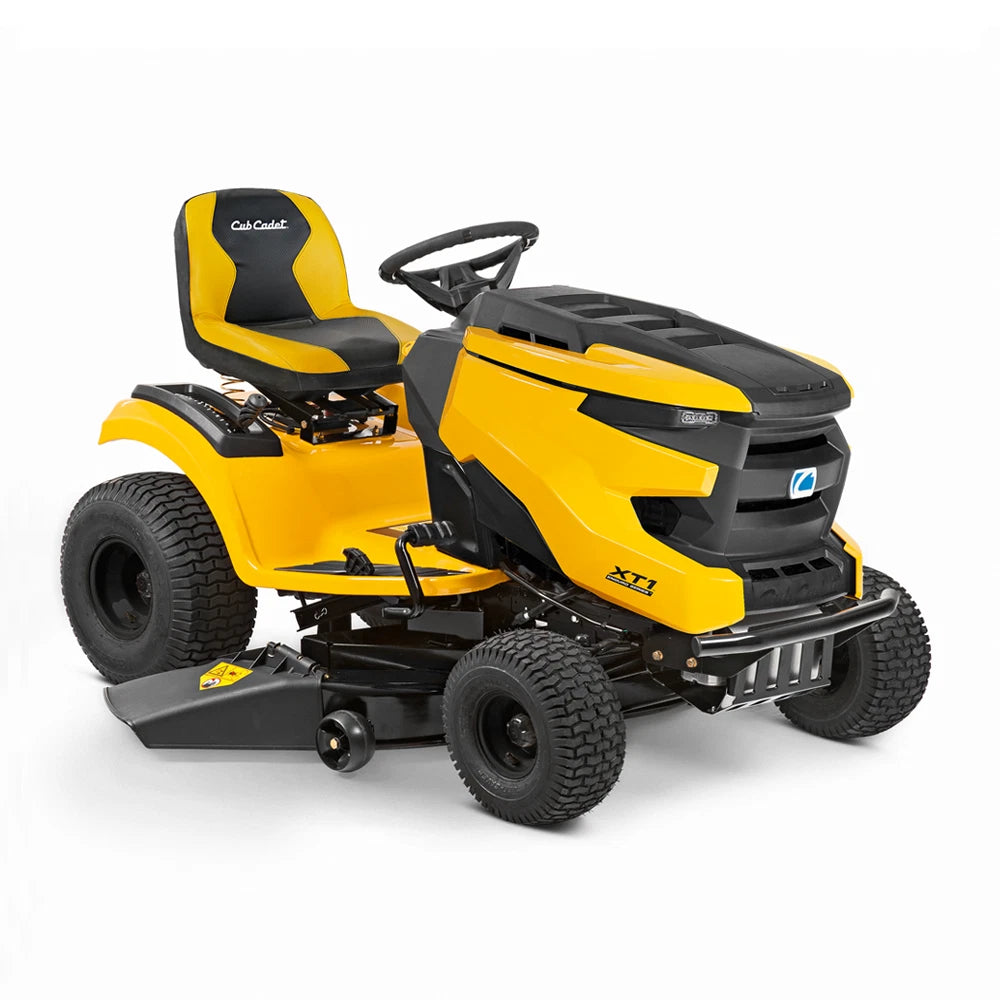

Cub Cadet XT1 OS96 Ride On Lawnmower with Side Discharge
- LAWN TRACTORS
- Cutting width : 96cm (38'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 9.0 / 2,300
- Mowing area in m 2 /h: 6,000
- Grass bag capacity (l) : Optional 200
The Cub Cadet XT1 OS96 features a 38” cutting deck with a side discharge and an adjustable cutting height range, from 25mm – 100mm. The powerful and reliable single cylinder Cub Cadet 547cm³ engine is joined to a smooth hydrostatic transmission for simple and efficient mowing. The cutting blades are activated with the pull of a button and the deck height can be easily adjusted through 12 height positions and engaged with the electric PTO system.
| ENGINE | XT1 OS96 | |||
| Engine | Cub Cadet | |||
| Engine displacement (cm3) | 547 | |||
| Rated power (kW/min-1) | 9.0 / 2,300 | |||
| Cylinders | Single | |||
| Fuel tank capacity(l) | 11.4 | |||
| DRIVE SYSTEM | ||||
| Transmission | Hydrostatic | |||
| Air speed (max) | Stepless (f/r) | |||
| Control | Foot pedal control | |||
| Cruise Control | Standard | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 6,000 | |||
| Cutting width | 96cm (38'') | |||
| Cutting height | 25-100 mm | |||
| Number of blades | 2 | |||
| Deck Engagement | Electric PTO | |||
| Deck height positions | 12 positions | |||
| Deck wheels | 2 balls deck wheels | |||
| Wash nozzle / mulching plug | – /Standard | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) / accessory no. | Optional 200/Optional (OEMR190-180A) | |||
| Bag lever / hardtop | – / – | |||
| Bag full indicator / Grass Deflector | – / Standard | |||
| FRAME | ||||
| Front axle | Heavy-duty cast-iron | |||
| Front bumper | Standard | |||
| Turning radius (cm) | TIGHT TURN 38cm | |||
| Wheels (front/rear) (Zoll) | 15 x 6 / 20 x 8 | |||
| Wheel bearings | Sleeve bearings | |||
| Frame | Robotically -welded | |||
| ELECTRIC | ||||
| Headlights | LED | |||
| COMFORT | ||||
| Seat type | Cut & Sew, high back rest | |||
| Seat adjustment | Lever, angled,10 slide | |||
| Steering wheel | Ergonomic with gentle touch | |||
| Tool box / Cub holder | Standard / Standard | |||
| 12V Plug | ||||
| Mow in reverse | Standard | |||
| Battery charger | – | |||
| DIMENSIONS | ||||
| Noise values (dB) | 88 / 98 / 100 | |||
| Vibration value body (K-factor) (m/s2) | 1.0 / 0.5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5.0 / 1.5 | |||
| Dimensions (L / W / H) (cm) | 175 / 131 / 110 | |||
| Weight net (kg) | 195 | |||
